Tennis matches require more than just adherence to the established rules. The tennis court on which the matches are played must also conform to the standard court dimensions set by the ITF (International Tennis Federation). While the dimensions of courts used for doubles and singles matches are generally the same, there may be minor differences.
Tennis matches require more than just adherence to the established rules. The tennis court on which the matches are played must also conform to the standard court dimensions set by the ITF (International Tennis Federation). While the dimensions of courts used for doubles and singles matches are generally the same, there may be minor differences.

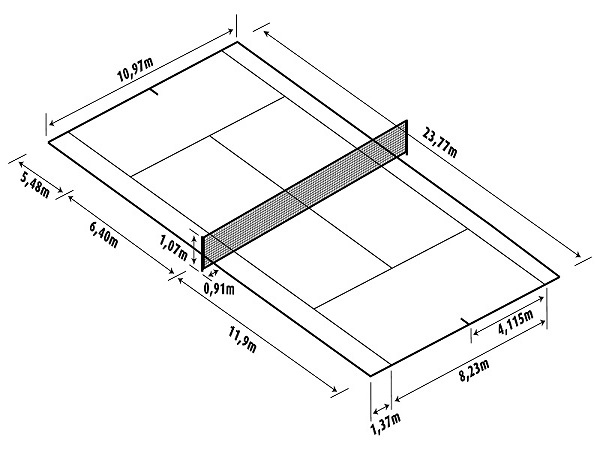

Doubles tennis courts are rectangular in shape and constructed to standard international dimensions. Here are the basic measurements:
| Feature | Measurement |
|---|---|
| Court Length | 23.77 meters |
| Court Width (Double) | 10.97 meters |
| Mesh Height (on the sides) | 1.07 meters |
| Mesh Height (Center) | 0.91 meters |
| Height of the rope/cable supporting the net | 1 meter |
| File White Band Width | 5 – 6.3 cm |
| Lateral Distance of Poles | 0.91 meters on each side |
| Distance of the Service Line from the Net | 6.40 meters |
| Distance of the Service Line from the Back Line | 5.49 meters |
The net is hung from a rope or metal cable with a maximum diameter of 0.8 cm.
The posts are positioned 0.91 meters outside the sidelines of the court.
The cable/band supporting the net should be adjusted to 1 meter at the top level, and the band width should be 5–6.3 cm.
Placing advertisements on nets, tape, and poles is prohibited .
Field lines clearly define the boundaries of the game and must be correctly positioned.
Tennis courts used for singles matches remain the same in length; only their width decreases.
| Feature | Measurement |
|---|---|
| Court Length | 23.77 meters |
| Court Width (Singles) | 8.23 meters |
| All other dimensions | It's the same with couples. |
Both singles and doubles can be played on the same court.
The lines can be marked to indicate the boundaries of singles and doubles.
Center service line : The line that divides the service area in half.
Width: 5 cm
Length: 10 cm
It should be perpendicular to the main lines.
Other lines :
Width: Should be between 2.5 cm and 5 cm .
Main lines (backline, etc.): Maximum 10 cm .
All lines should be the same color and create sufficient contrast with the background.
